A core drill is a hollow, cylindrical drill used to bore holes in different surfaces. While the drill is made of metal, the majority of drill tips have a diamond or carbide coating. A core drill is made up of three parts: a motor, a handle, and drill bits. A core drill is differentiated from other cement cutting tools in that it extracts a sample from the material. The drill’s hollow centre enables it to carve a sample from the material being drilled. The material removed, known as a “core sample,” fits into the contours of the drill’s hollow walls.

Core drills are designed to penetrate a variety of surfaces and can cut through ice, wood, rocks, and cement. To make the hole, it twists and pushes through the surface being drilled. For the best results, each surface requires a different drill bit.

A core drill’s size, power, and features can vary depending on its intended use. A small core drill can be used by individuals at home. However, when it comes to drilling core holes in mines and buildings, you’ll need a stronger, medium-sized drill. To cut concrete on large construction projects, large drills are typically used.

How Does Core Drilling Work?

In most cases, core drilling will only take place after a GPR scan has been performed. GPR (Ground Penetrating Radar) scanning is a non-destructive technique that allows specialists to scan an area to assess the concrete’s structural integrity before it’s drilled. Scanning is essential as it helps guarantee the safety of the drilling operations that will take place.

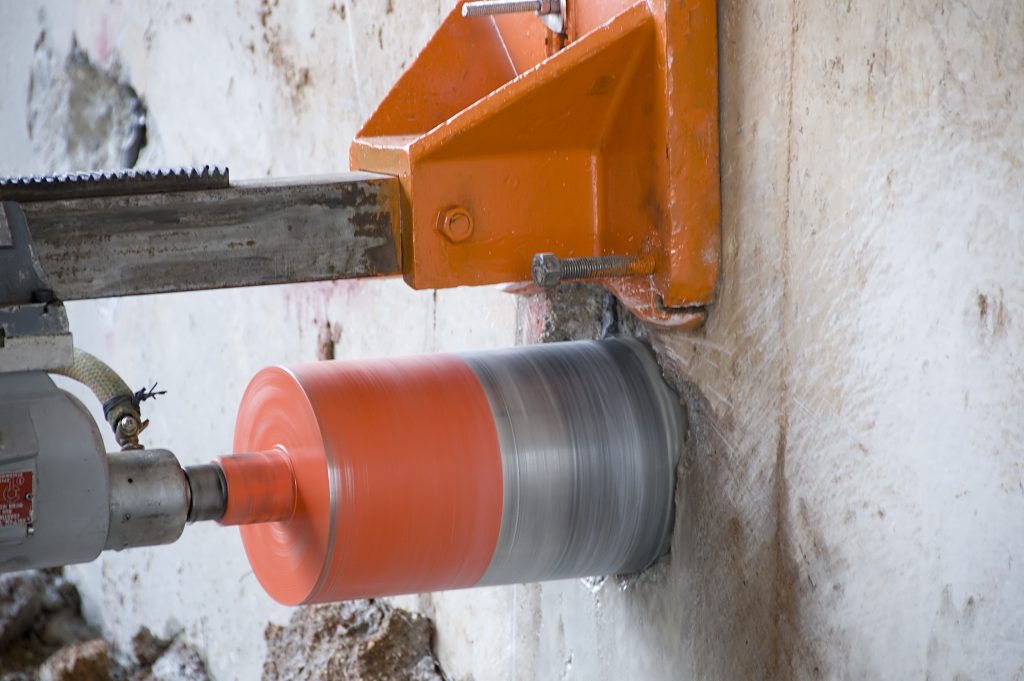

Using a core drill allows you to remove a column of concrete, rock, or other material from the targeted area. The rotating component of the drilling machine is where the concrete coring drill is mounted before it’s attached to the required material’s surface. A core of rock, concrete, or any other material that is being evaluated is removed as the shaft rotates and drills into the surface.

The process produces a perfectly circular hole in the ground and a column of sediment known as a “slug.” In most cases, the sediment sample is used for geotechnical analysis to analyze the drilled-out material’s composition and properties for validation purposes. Additionally, the resulting hole can be used to make room for the placement of construction supplies.

Why Use Core Drilling?

While there are many uses for core drilling, its main function is to examine the sediment in a given area. Core drills can extract an undisturbed sample of a target material’s composition. With this sample, researchers can examine and record the material’s properties.

The properties can include the material’s quality, strength, capacity (how much weight it can hold), and even the material’s current deterioration, which could help determine if an area is susceptible to excess weight or construction.

Additionally, in construction projects, core drilling can be used to create the openings required for different components to pass through.

What Projects Need Core Drilling?

Core drilling is useful for most construction projects and is especially useful in the construction of large subsurface structures such as tunnels, pipelines, and even parking garages. Its utility is also useful when smaller spaces for cables, wires, and cords are required.

In more complex projects, specialized concrete core hole drilling methods such as horizontal directional drilling are utilized. HDD, or horizontal drilling, is a technique commonly used in the oil and gas industries as it makes it easy to drill holes through which plumbing and pipes can be installed thanks to the technique’s accuracy.

Core drilling can also be used in the remodeling of a home or building to improve plumbing systems, HVAC systems, sprinkler systems, and cable lines. This technique is often used by people in a time crunch because of its effectiveness.
